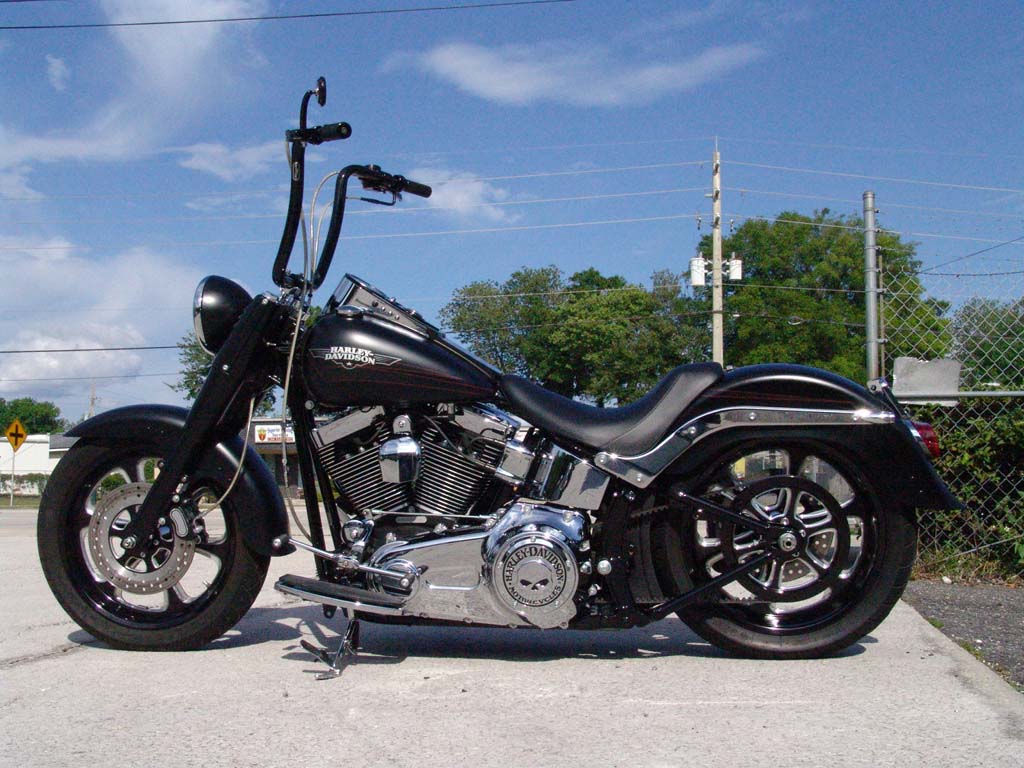

2009 Harley-Davidson  Fat Boy FLSTFI
Customized for Daryl

FOR SALE 2009 Harley-Davidson Fat Boy FLSTFI
FOR SALE 2009 Harley-Davidson Fat Boy FLSTFI
FOR SALE 2009 Harley-Davidson Fat Boy FLSTFI
FOR SALE 2009 Harley-Davidson Fat Boy FLSTFI
FOR SALE 2009 Harley-Davidson Fat Boy FLSTFI
FOR SALE 2009 Harley-Davidson Fat Boy FLSTFI


FOR SALE 2009 Harley-Davidson Fat Boy FLSTFI

FOR SALE 2009 Harley-Davidson Fat Boy FLSTFI
FOR SALE 2009 Harley-Davidson Fat Boy FLSTFI FOR SALE 2009 Harley-Davidson Fat Boy FLSTFI
FOR SALE 2009 Harley-Davidson Fat Boy FLSTFI FOR SALE 2009 Harley-Davidson Fat Boy FLSTFI

FOR SALE 2009 Harley-Davidson Fat Boy FLSTFI

2009 Harley-Davidson  Fat Boy FLSTFI

FOR SALE 2009 Harley-Davidson Fat Boy FLSTFI
Customization done at Chopper City USA

DOMINATOR WHEELS, ROTORS &  PULLEY
18x3.5 FRONT  18x5.5 REAR
Dominator Contrast Cut
130/70/18 FRONT TIRE Metzler ME880
200/50/18 REAR TIRE Metzler ME880
FRONT LOWERING KIT Progressive 10-2003
REAR LOWERING KIT Progressive 30-5048c
HANDLEBARS APES Carlini Design Gangster Apes
HANDCONTROL BRAKE Joker 03-110BLK
HANDCONTROL CLUTCH Joker 03-120BLK
THROTTLE HOUSING Joker 03-147BLK
GRIPS Joker 03-90BLK
MICRO SWITCHES
DASH SMOOTH BLACK Pro-One  Smooth Black
BARE BONES SEAT LePera LK-007
BIG SUCKER AIR CLEANER Ness Stage 1
AIR CLEANER COVER Chopper City
POWER COMMANDER
VANCE & HINES SHORT SHOTS BLACK V&H 47221
LICENSE PLATE Kurykan
MINI TURN SIGNALS
FORK SLIDER COVERS Powder Coated Flat Black
FORK TINS (5 PC) Powder Coated Flat Black
HEADLIGHT HOUSING Powder Coated Flat Black
LOWER LEG END CAP Powder Coated Flat Black
LOWER LEGS Powder Coated Flat Black
KICKSTAND




Stock Specifications:

Engine
Displacement3 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System9 Electronic Sequential Port Fuel Injection (ESPFI)
Drivetrain
Primary Drive Chain, 34/46 ratio
Transmission 6-Speed Cruise Drive®


Chassis
Frame Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, round tube sections, forged junctions; MIG welded
Front Forks 41.30 mm telescopic, “beer can” covers
Rear Shocks Hidden, horizontal-mounted, coil-over

Wheels4 (Mirror Polished Chrome, Bullet Hole Disc Cast Aluminum, front and rear option):
Silver, Bullet Hole Disc Cast Aluminum
- Front 17 in. x 3.50 in. (431.80 mm x 88.90 mm)
- Rear 17 in. x 6 in. (431.80 mm x 152.40 mm)

Brakes:
- Caliper Type 4-piston front and 2-piston rear
- Rotor Type Patented, uniform expansion rotors
(diameter x width):
- Front 11.50 in. x .20 in. (292.10 mm x 5.08 mm)
- Rear 11.50 in. x .23 in. (292.10 mm x 5.84 mm)

Suspension Travel:
- Front Wheel 5.10 in. (129.54 mm)
- Rear Wheel 4.30 in. (109.22 mm)

Performance
Engine Torque5 (per SAE J1349):
- North America 89.80 ft. lbs. @ 2750 rpm (121.77 NM @ 2750 rpm)
- World 88.51 ft. lbs. @ 3300 rpm (120.02 NM @ 3300 rpm)
- Japan 81.87 ft. lbs. @ 3000 rpm (111.02 NM @ 3000 rpm)

Lean Angle (per SAE J1168):
- Right 30°
- Left 28°

Fuel Economy7
(EPA urban/highway test) 35/54 mpg (6.72/4.36 L/100 km)

Electric
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 38-amp system (439W @ 13V, 2000 rpm, 489W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
- Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
- Tail/Stop Lights 8W/28W (5W/21W)
- Turn Signal Lights 28W (21W) self-canceling
- Indicator Lamps: High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system6 (optional), 6-speed, low fuel warnings



Give us a call or Email for your own custom or customized motorcycle
 by Master Custom Builder Dave Welch



888-721-1969
